    25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge

    Ask Lasest Price
    Brand Name : Hongzhou
    Model Number : HZZ5310TJQ
    Certification : ccc
    Price : 700,000.00-800,000.00USD
    Payment Terms : L/C, T/T
    Supply Ability : 10UNIT PER YEAR
    Delivery Time : 3MONTH
    • Product Details
    • Company Profile

    25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge


    HZZ5310TJQ emergency bridge-laying truck is mainly used to guarantee road collapse, bridge rupture and other problems caused by man-made or natural disasters and other factors, quickly cross the river, valley, collapse and other obstacles within 20 meters, and quickly create an emergency rescue channel.

    This equipment can be used in plateau (to install supercharged engines and adjust a few oil varieties), mountain, plain and water-grid rice field areas.

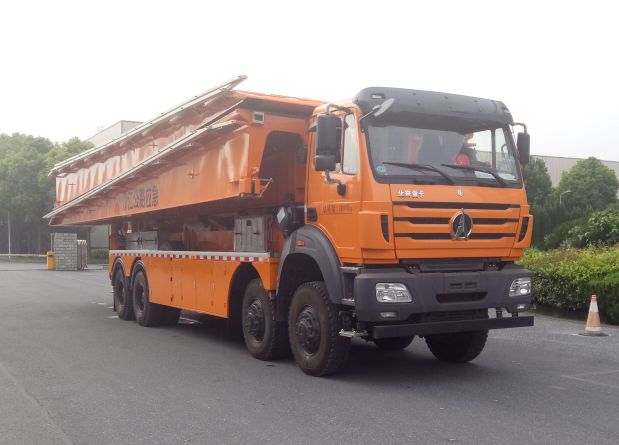

    HZZ5310TJQ emergency bridge-laying truck is mainly composed of laying bridge, chassis and auxiliary equipment. In the state of transportation, the laying bridges are overlapped and fixed on a truck chassis; When in use, the bridge-laying truck shall complete the erection and withdrawal of the laying bridge. Each set of equipment is equipped with a set of auxiliary equipment, which is used to assist the completion of the work, fix the bridge on the truck chassis and fix the bridge after erection


    25m Emergency Bridge Laying Truck Easy Cross Rivers When No Bridge


    Total Weight36200Kg

    Oversize

    Working status

    Length13600mm
    Width3300mm
    Height3580mm
    Width when no bridge2500mm

    Load of the bridge

    Crawler type55000Kg
    Wheel Truck type14000Kg

    Max. Of Crawler type ( Pass by with more attention)

    60000Kg
    Laying bridge weight12860Kg
    Laying bridge length25000mm
    Max. Cross barrier or river width23000mm
    Bridge section length12500mm
    Bridge Deck width3300mm
    Vehicle track width1200mm
    Bridge section height980mm
    Bridge section small mitered end height350mm
    Min. Erection time7.5min
    Min. Withdraw time8min
    Max. Vertical slope when bridge-laying±10%
    Max. Horizontal slope when bridge-laying±5%
    Maximum distortion when bridge-laying4%
    Allow difference of the bank±2000mm
    Operator2
    Max. Speed90Km/h
    Approach/departure angle32°/26.4°
    -40℃~48℃ Operation environment temperature
