    24m Platform type Bridge Inspection Vehicle Single Lane ocuppied

    Ask Lasest Price
    Brand Name : HSA
    Model Number : HSA5318JQJ
    Certification : ISO9001, CCC
    Price : negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 150 sets per year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

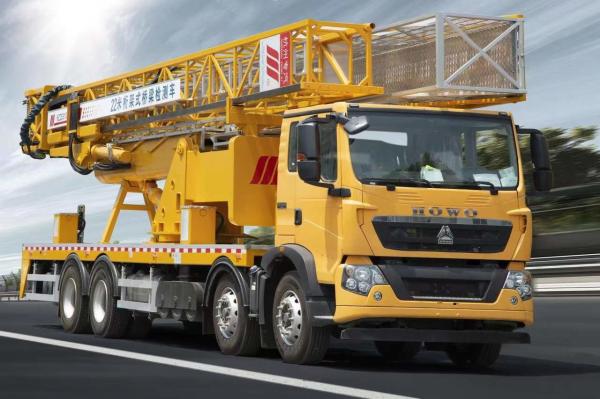

    24m Platform type Bridge Inspection Vehicle Single Lane ocuppied

    New Products 24m Platform Type Bridge Inspection Vehicle For Bridge Inspection, Repair And Maintenance

    Generally, bridges are inspected every two years, with some older or lower-rated bridges inspected more often.


    We offer an two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.

    As the bridges continue to age, more and more countries emphasis has slowly evolved from building new bridges to maintaining existing ones. New technologies, materials, evaluation techniques, and construction methods have advanced in recent years to meet this challenge.


    In order for a bridge owner to conduct its bridge inspections more easily and efficently. We suggest you use our platform type bridge inspection vehicle. Our platform type bridge inspection vehicle is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

    It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.


    1. Specifications:
    Structure type of bridge inspection vehiclePlatform type
    Max. Horizontal working range24M (72’)
    Max. vertical working depth8000mm (26’)
    Width of work platform1080mm
    Max. load on Truss platform800KG (1763lb)
    Max. load on telescopic Truss platform400KG(881lb)
    Max. Width of sidewalk spanning3000mm (9.8’)
    Max. height of guardrail spanning4400mm (14.5’)
    The 1st rotation angle scope0~90°
    The 2nd rotation angle scope0~1800
    Max. amble travelling speed15m/min
    Operation ModeWireless Remoter , Panel, Emergency manual
    Drive systemTwo drive system: PTO and gasoline generator
    Amble self travelling deviceTransfer case instead of amble motor
    Chassis brandHowo
    G.V.W31000KG
    Overall dimensions12560(L)×2500(W)×4000 (H)mm


    2. Packing & Delivery:

    Our service team can arrange shipment for you, to keep sure you can get our products on schedule. We will make sure all the vehicle safe in delivery.


    3. Market


    Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.


    4. MBIU working video on youtube:


    Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be


    Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
