    22M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges

    Ask Lasest Price
    Brand Name : China Jinggong
    Model Number : HZZ5240JQJ16
    Certification : ISO9001, CCC
    Price : Negotiable
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 10Units/Months
    Delivery Time : 45days
    • Product Details
    • Company Profile

    22M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges

    22 M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges(HZZ5311JQJ)


    The Bridge Inspection Vehicle is a kind of special-purpose vehicle for bridge inspection personnel to provide operation platform during the inspection process, and can be used for all kinds of large and medium-sized bridge inspection, maintenance and repair, reinforce and etc.


    Specifications:


    Model

    HZZ5311JQJ

    Product name

    Operating vehicle for bridge detection

    Chassis Model

    GB450B 10×4×6NA

    Driver type

    10×4x6

    Total mass31

    38000(Kg)


    Outer dimensions

    12700×2500×3990mm

    Engine model

    DC13

    Engine power

    450(HP)

    Operating range under bridge

    0-22.41M

    Vertical operating range under the bridge

    0-23.3M

    The main arm across the width

    4.5M

    The first scope of rotation

    0-90°

    The second scope of rotation

    0-135°

    Rated load platform

    250KG

    Hydraulic system

    The proportion of electro-hydraulic servo systems

    Control system

    Manual control mode

    Cable control mode

    Wireless control mode



    Vertical operating range under the bridge Operating range under bridge

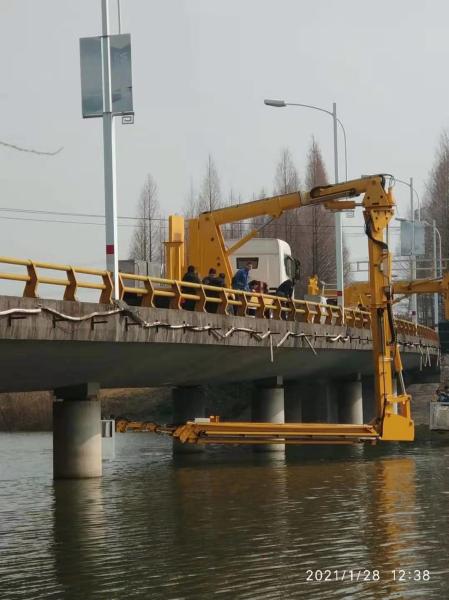

    The Bridge Inspection Vehicle can ensure that the staff or related equipment can be quickly and safely transported to each part of the bridge, including and places on the bridge, under bridge and bridge mast. Bucket angle adjusting.
