    Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type

    Ask Lasest Price
    Brand Name : China Jinggong
    Model Number : HZZ5311JQJ
    Certification : ISO9001, CCC
    Price : Negotiable
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 10Units/Months
    Delivery Time : 45days
    • Product Details
    • Company Profile

    Big Cable Bridge Inspection Vehicle Carbon Steel 22 M Bucket Type

    22 M Bucket Type Bridge Inspection Vehicle For Big Cable Bridges(HZZ5311JQJ)


    With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues.


    The Bridge Inspection Vehicle is a kind of special-purpose vehicle for bridge inspection personnel to provide operation platform during the inspection process, and can be used for all kinds of large and medium-sized bridge inspection, maintenance and repair, reinforce and etc.


    Specifications:


    Model

    HZZ5311JQJ

    Product name

    Operating vehicle for bridge detection

    Chassis Model

    GB450B 10×4×6NA

    Driver type

    10×4x6

    Total mass31

    38000(Kg)


    Outer dimensions

    12700×2500×3990mm

    Engine model

    DC13

    Engine power

    450(HP)

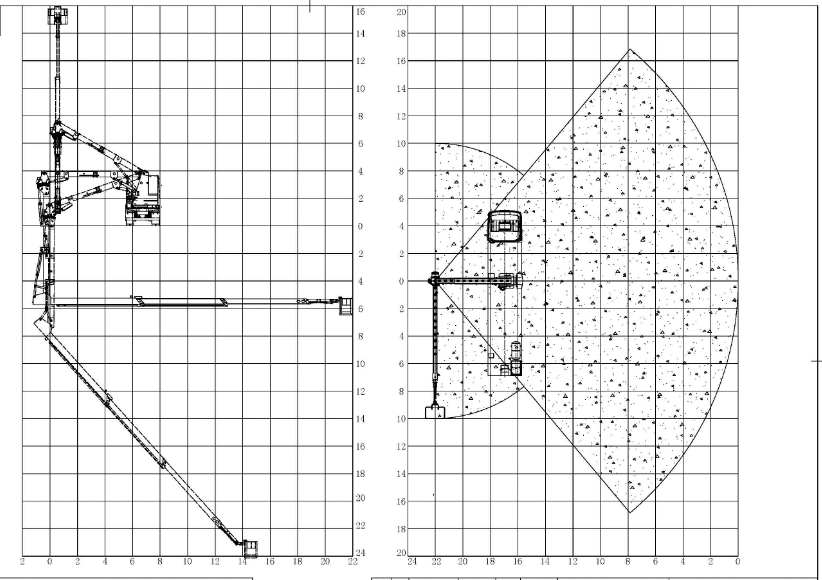

    Operating range under bridge

    0-22.41M

    Vertical operating range under the bridge

    0-23.3M

    The main arm across the width

    4.5M

    The first scope of rotation

    0-90°

    The second scope of rotation

    0-135°

    Rated load platform

    250KG

    Hydraulic system

    The proportion of electro-hydraulic servo systems

    Control system

    Manual control mode

    Cable control mode

    Wireless control mode



    The Bridge Inspection Vehicle is a kind of special-purpose vehicle for bridge inspection personnel to provide operation platform during the inspection process, and can be used for all kinds of large and medium-sized bridge inspection, maintenance and repair, reinforce and etc. Vertical operating range under the bridge Operating range under bridge


    Bridge Inspection Vehicle is a high-tech special product integrating machine, electricity, and hydraulic. It has the characteristics of beautiful appearance, compact structure, convenient operation, safety, high speed and efficiency.


    The Bridge Inspection Vehicle can ensure that the staff or related equipment can be quickly and safely transported to each part of the bridge, including and places on the bridge, under bridge and bridge mast. Bucket angle adjusting.
