    Under Bridge Inspection Units Designed For bridge Maintenance and repair job

    Ask Lasest Price
    Brand Name : HSA
    Model Number : HSA5251JQJ
    Certification : ISO9001, CCC
    Price : negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 150 sets per year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Under Bridge Inspection Units Designed For bridge Maintenance and repair job

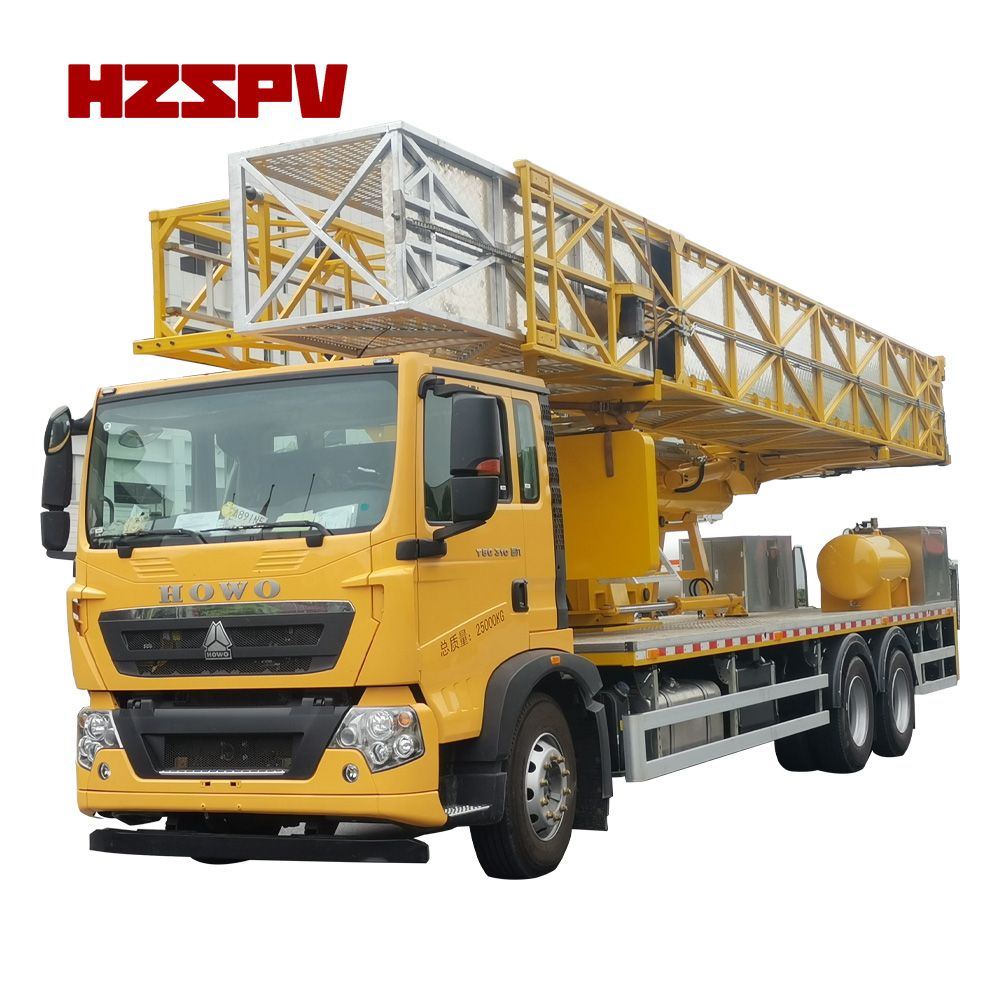

    China newest platform type under bridge inspection truck from HSA


    The platform type bridge inspection truck is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

    It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.

    Idea for all under-bridge project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.


    • Cab optional air condition, driver’s seat can be moved front and back, back and lift height of the seat can be adjusted, the cab also can take 2 passengers.
    • Instrument board configuration: Speedometer, water temperature, fuel gauge, engine speed recorder,alarm indicator, gear position indicator light,turning indicator light.
    • Rear axle equipped with four hydraulic cylinder for supporting wheel, supporting the chassis frame when working, to increase stability and safety for the vehicle.
    • The control panel equipped with button or switch for hydraulic pump control, transfer case(retarder motor) control, walking control.


    1. Specifications:
    Structure type of bridge inspection vehiclePlatform type
    Max. Horizontal working range15M
    Max. vertical working depth8000mm
    Width of work platform1080mm
    Max. load on Truss platform600KG
    Max. load on telescopic Truss platform300KG
    Max. Width of sidewalk spanning3000mm
    Max. height of guardrail spanning4200mm
    The 1st rotation angle scope0~90°
    The 2nd rotation angle scope0~1800
    Max. amble travelling speed15m/min
    Operation ModeWireless Remoter , Panel, Emergency manual
    Drive systemTwo drive system: PTO and gasoline generator
    Amble self travelling deviceTransfer case instead of amble motor
    ChassisHOWO 6X4
    G.V.W25000KG
    Overall dimensions11560(L)×2500(W)×4000 (H)mm



    working video on youtube website:


    Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be


    Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
