    Bridge Inspection Vehicle For inspector to bridge inspection and Repair

    Ask Lasest Price
    Brand Name : HSA
    Model Number : HSA5319JQJ
    Certification : ISO9001, CCC
    Price : negotiation
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 150 sets per year
    Delivery Time : 90 days
    • Product Details
    • Company Profile

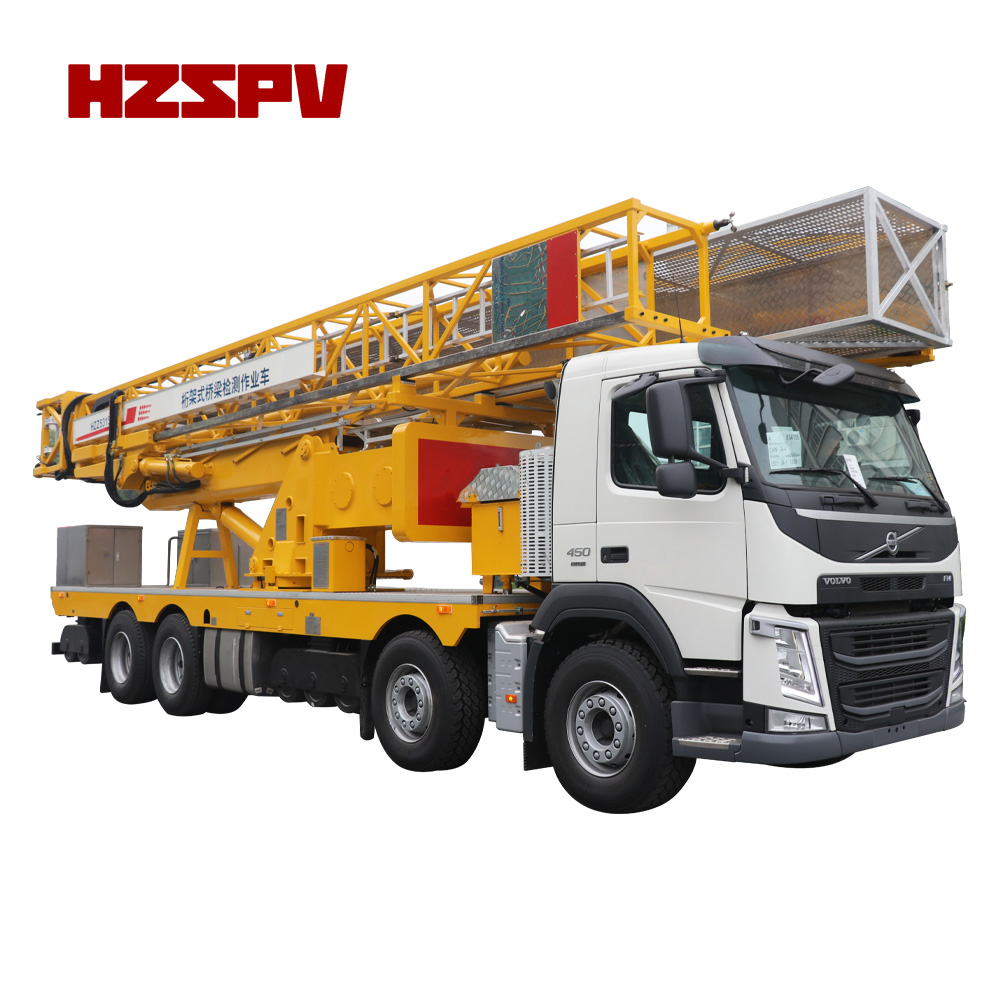

    Bridge Inspection Vehicle For inspector to bridge inspection and Repair

    Bridge Inspection Vehicle Designed For Bridge Inspections

    The platform type bridge inspection truck is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

    It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.

    Road bridges carrying passengers and vehicles are required a routine inspection every year. Meeting these requirements often involves the use of specialized heavy machinery, such as an under-bridge inspection truck, to gain access. We provide two models of Bridge Inspection truck. One is basket model and the other is platform model. Our bridge inspection trucks are Versatile, efficient and lightweight, they can help you with your bridge inspection and maintenance needs.


    1. Specifications:
    Structure type of bridge inspection vehiclePlatform type
    Max. Horizontal working range22M (72’)
    Max. vertical working depth8000mm (26’)
    Width of work platform1080mm
    Max. load on Truss platform800KG (1763lb)
    Max. load on telescopic Truss platform400KG(881lb)
    Max. Width of sidewalk spanning3000mm (9.8’)
    Max. height of guardrail spanning4400mm (14.5’)
    The 1st rotation angle scope0~90°
    The 2nd rotation angle scope0~1800
    Max. amble travelling speed15m/min
    Operation ModeWireless Remoter , Panel, Emergency manual
    Drive systemTwo drive system: PTO and gasoline generator
    Amble self travelling deviceTransfer case instead of amble motor
    ChassisVolvo FM450 84RB
    G.V.W31000KG
    Overall dimensions12560(L)×2500(W)×4000 (H)mm


    2. Competitive Advantage:


    • Optimization Chassis

    Adopted imported Volvo chassis, 331KW large engine power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.

    • Reliable Performance

    The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.

    • Light weight design

    Main structure parts made of imported high-strength steel with advanced welding procedure makes sure the Truss light with more loading capacity.

    • High Working Efficiently

    Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions
    Self-propelled ability during operation, max. moving speed 15m/min

    fast reaction on extent and retract during under bridge work, and the vehicle deploy time is only 4 -8 minutes.


    3. Market


    Our Bridge Inspection Vehicles have been exported to South Korea, Brunei, Malaysia, Vitenam, Maldives, Indonisia and etc.


    4. MBIU working video on youtube:


    Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be


    Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be
