    Platform Type Mobile Bridge Inspection Unit Truck Chassis 309 KW 420 HP

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HZZ5320JQJ22
    Price : negotiation
    Delivery Time : 45days
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 2Units/Month
    • Product Details
    • Company Profile

    Platform Type Mobile Bridge Inspection Unit Truck Chassis 309 KW 420 HP

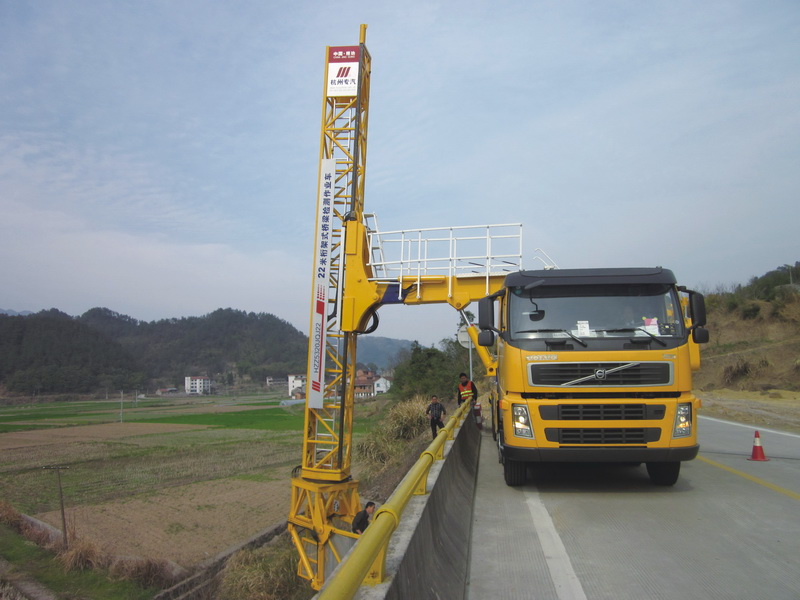

    Platform Type Bridge Inspection Truck chassis VOLVO 8x4 309KW (420HP)


    Quick Details:


    Model: HZZ5320JQJ22
    Product name: Platform Type Bridge Inspection Vehicle
    Chassis Model: VOLVO FM400 84R B
    Driver type: 8×4

    Maximum Net Power of Engine: 309KW (420HP)

    Overall dimensions: 12420×2500×4000 mm

    Max. Horizontal Range: 12500mm-22000mm


    Main Description

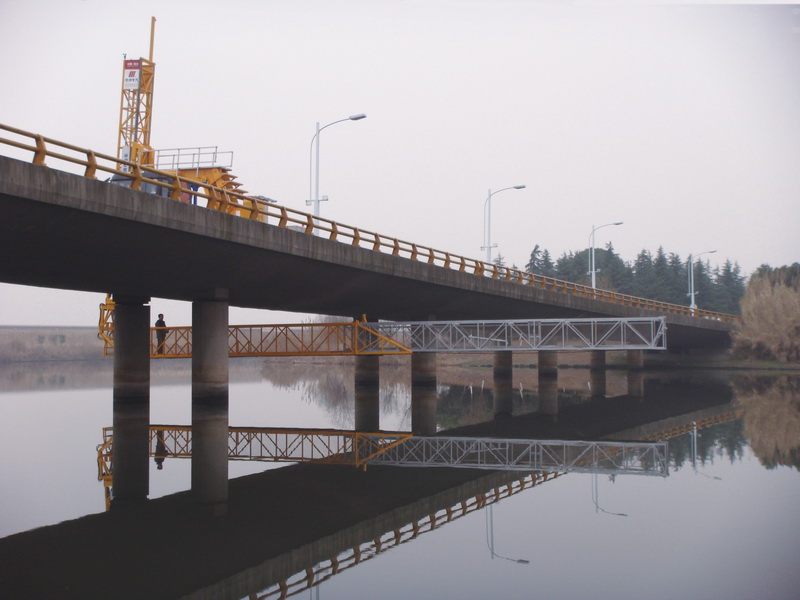

    Platform Type Bridge Inspection Vehicle used imported VOLVO, Mercedes-Benz or domestic FAW chassis, drive mode is 8 × 4, the maximum speed is 102km / h, maximum operating inspection speed is 10m/min, and good view cab with air conditioning system and FM / AM radio, it is very suitable for large bridges, overpasses, approachbridges and other various types of bridge preventive inspection.


    Platform Type Bridge Inspection Vehicle( hereinafter referred to as Bridge Inspection Vehicle ) using two sets of rubber balance wheel which operated by hydraulic system for auxiliary support in working state. The balance wheel to maintain gravitational balance in working and balance wheel does not exceed the vehicle. In order to ensure the stability and reliability of bridge inspection vehicle in working, we used three sets of control method: remote, panel , emergency. Remote is recommended for control, wireless remote control, the proportion of output, so that the operator can quickly smooth operation of each action of bridge inspection vehicle; Panel method using two operating systems, one is located in the control box which on the right rear of the vehicle, another is located on the second rotary working platform, that ensure operator that each action operations are within sight of their own and to ensure the safety; Emergency method is through directly to operate electro-hydraulic proportional valve handle to control the bridge inspection vehicle’s movement and speed.


    The bridge inspection vehicle is equipped with a video image monitoring system, electro-hydraulic synchronous interlock control system, internal real-time system, work status switch automatic adjustment system, safety relief valve and balancing valve , etc. These features ensure the safety when the bridge inspection vehicle traveling or working. The bridge inspection vehicle also equipped standby power system which consists of generator and emergency motor ump, when the chassis engine has failure , you can use this system to provide power for bridge inspection vehicle , to ensure their normal work or let the platform back to recover state.

    Specifications:


    ModelHZZ5320JQJ22
    Drive Type8×4
    Chassis ModelVOLVO FM400 84R B
    Maximum Net Power of Engine309KW(420HP)
    G.V.W.32000 kg
    Overall dimensions12420×2500×4000 mm
    Maximum Driving Speed97.2 km/h
    Maximum working Speed10 km/h
    Max. Horizontal Range12500mm-22000mm
    Maximum overbridging of Sidewalk3500mm
    Maximum Crossing Of Sound Barrier3500mm
    Maximum Load on Platform800kg.
    Maximum Load on telescopic platform400kg.
    The First Rotation of Platform0~90°
    The Second Rotation of Platform0~180°
    Space Required on Bridge2800mm
    Maximum Lowering Depth8100mm
    Width of Platform1080mm
    Classification of Wind Resistance≤12.5m/s
    Fix Stabilizer for Rear AxleCylinder
    Control ModeRemote/Panel/Emergency
    Wireless Remote ControlGermany NBB
    Emergency GeneratorAmerica KOHLER
    Hydraulic SystemElectro-hydraulic Proportional Servo System(HAWE, Germany)
    Retarter MotorMachinery Hydrostatic Transmission(France POCLAIN)


    Competitive Advantage:


    Leading Technology;

    Optimization Chassis: Used imported VOLVO, Mercedes-Benz or domestic FAW chassis ;

    Reliable Performance;

    Carrying Capacity is strong ;

    High Working Efficiently ;

    Powerful Communication Function;

    With Complete Accessory;

    High Adaptability To Circumstance
