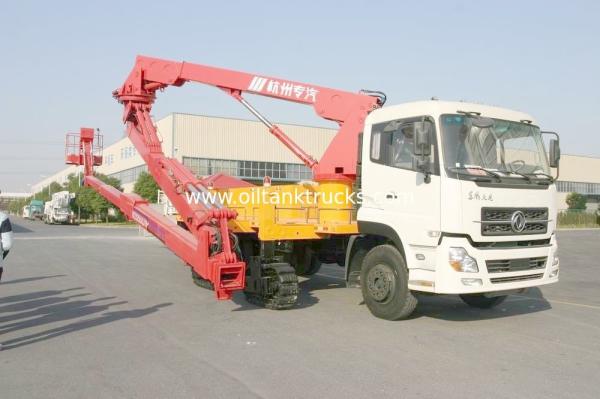

    Dongfeng Euro 5 Emission 16m Under Bridge Access Platforms / Bridge Snooper Truck

    Ask Lasest Price
    Brand Name : China Jinggong
    Model Number : HZZ5240JQJ16
    Price : negotiation
    Supply Ability : 2Units/Month
    Delivery Time : 45 Days
    Certification : ISO9001, CCC
    Payment Terms : T/T, L/C, Paypal, Western Union
    • Product Details
    • Company Profile

    Dongfeng Euro 5 Emission 16m Under Bridge Access Platforms / Bridge Snooper Truck

    Dongfeng Euro 5 emission 16m under bridge access platforms / bridge snooper truck Dongfeng 6×4

    Low Oil Consumption 16m under bridge access platforms / bridge snooper truck Dongfeng 6×4

    Quick Details:

    Model:HZZ5240JQJ16
    Product name:Bucket type bridge inspection unit
    Chassis Model:DFL1250A9
    Driver type:6×4
    Advantage:low oil consumption, environmental design, ensure high stability



    Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
    The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

    Specifications:

    ModelHZZ5240JQJ 16
    Product nameBucket type bridge inspection unit
    Chassis ModelDFL1250A9
    Driver type6×4
    G.V.W.24000(Kg)

    Outer dimensions
    11240×2500×3930mm
    Engine modelDONGFENG CUMMINS
    ISDe230 30, ISDe245 30, ISDe270 30
    Engine power230,245,270(HP)
    Max. horizontal range0-16.41M
    Max. lowering depth0-23.3M
    Max. overbridging of sidewalk3-5.4M
    The first scope of rotation0-90°
    The second scope of rotation0-180°
    Max. load on platform300KG
    Hydraulic systemThe proportion of electro-hydraulic servo systems
    Control system
    Manual control modeCable control modeWireless control mode


    Low Oil Consumption 16m under bridge access platforms / bridge snooper truck Dongfeng 6*4

    Vertical working range under bridge Horizontal working range under bridge

    Competitive Advantage:


    Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
