    Dongfeng 6x4 16m 270HP Bucket Type Bridge Inspection Vehicle DFL1250A9

    Ask Lasest Price
    Brand Name : China Jinggong
    Model Number : HZZ5240JQJ16
    Price : negotiation
    Supply Ability : 2Units/Month
    Delivery Time : 45days
    Certification : ISO9001, CCC
    Payment Terms : T/T, L/C, Paypal, Western Union
    • Product Details
    • Company Profile

    Dongfeng 6x4 16m 270HP Bucket Type Bridge Inspection Vehicle DFL1250A9

    Dongfeng 6x4 Bucket Type Bridge Inspection Equipment under bridge inspection truck 16m 270HP
    Good quality Oil Tank Trailer for sales
    Good quality Oil Tank Trailer for sales
    Good quality and reasonable price. Wish your company business better and better.

    —— Micheal

    Nice service will get nice achievement, come on guys!

    —— John

    I'm Online Chat Now

    Dongfeng 6x4 Bucket Type Bridge Inspection Equipment , bridge inspection platform 16m 270HP

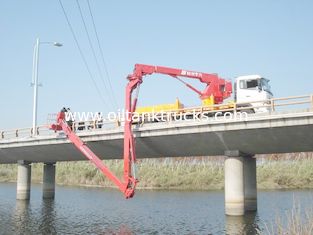

    Large Image : Dongfeng 6x4 Bucket Type Bridge Inspection Equipment , bridge inspection platform 16m 270HP

    Product Details:

    Place of Origin:Zhejiang.Hangzhou
    Brand Name:China Jinggong
    Certification:ISO9001, CCC
    Model Number:HZZ5240JQJ16

    Payment & Shipping Terms:

    Minimum Order Quantity:No limited
    Price:Negotiable
    Packaging Details:Naked
    Delivery Time:45days
    Payment Terms:T/T, L/C, Paypal, Western Union
    Supply Ability:2Units/Month
    Port of Delivery::Shanghai/Ningbo
    Chat Now
    Detailed Product Description
    Model:HZZ5240JQJ 16Chassis Model:DFL1250A9
    G.V.W.:24000(Kg)Outer Dimensions:11240×2500×3930mm
    Engine Model:DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30Engine Power:230,245,270(HP)
    Hydraulic System:The Proportion Of Electro-hydraulic Servo Systems

    Dongfeng 6x4 Bucket Type Bridge Inspection Equipment , bridge inspection platform 16m 270HP


    Quick Details:


    Model:HZZ5240JQJ 16
    Product name:Bucket type Bridge Insepction unit
    Chassis Model:DFL1250A9
    Driver type:6×4
    Engine power:230,245,270(HP)


    The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.


    Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

    Specifications:


    ModelHZZ5240JQJ 16
    Product nameBucket type Bridge Insepction unit
    Chassis ModelDFL1250A9
    Driver type6×4
    G.V.W.24000KG

    Outer dimensions

    11240×2500×3930mm
    Engine model

    DONGFENG CUMMINS

    ISDe230 30, ISDe245 30, ISDe270 30

    Engine power230,245,270(HP)
    Max. horizontal range0-16.41M
    Max. lowering depth0-23.3M
    Max. overbridging of sidewalk3-5.4M
    The first scope of rotation0-90°
    The second scope of rotation0-180°
    Max. load on platform300KG
    Hydraulic systemThe proportion of electro-hydraulic servo systems
    Control system
    Manual control modeCable control modeWireless control mode

    Dongfeng 6x4 Bucket Type Bridge Inspection Equipment , bridge inspection platform 16m 270HP


    Vertical working range under bridge Horizontal working range under bridge


    Competitive Advantage:


    Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
