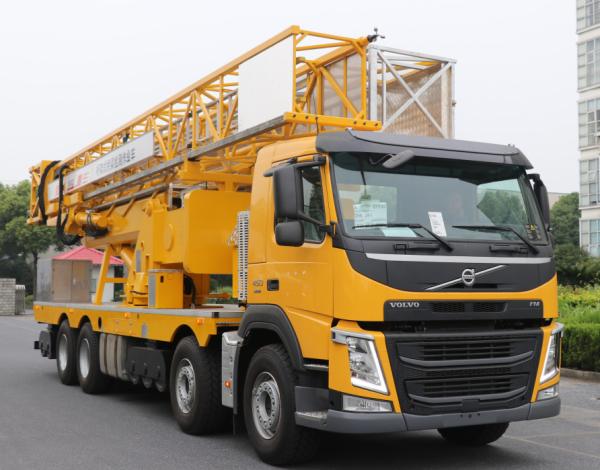

    Durable Under Bridge Platform Snooper Truck Inspection Equipment Yellow Color

    Ask Lasest Price
    Brand Name : China Jinggong
    Model Number : HZZ5319JQJ
    Certification : CCC
    Price : negotiation
    Supply Ability : 100 unit per year
    Delivery Time : 6month
    • Product Details
    • Company Profile

    Durable Under Bridge Platform Snooper Truck Inspection Equipment Yellow Color


    19m Platform Type 8x4 (Euro VI) VOLVO chassis under bridge inspection Equipment


    19m Bridge inspection vehicle platform bridge maintenance truck full range of movement


    Quick Details:

    1. Operating length: 19m

    2. Chassis: Volvo

    3. Drive Type: 8x4

    4. Vehicle Type: Platform Type

    5. Enigne Power: 450HP

    6. Emission Stand: Euro VI


    With increasing numbers of bridges in the world, safety of bridges becomes a top priority. This needs periodic inspection on all parts of the bridge, which are not easily accessible. These inspections are primarily visual and require hands-on observations in order to check for loose and broken hardware, corrosion, insect damage, and a multitude of other maintenance and safety issues. Our platform bridge inspection vehicles are Versatile, efficient and lightweight, they can help you with all your bridge inspection and maintenance needs.



    It is also able to run in extremely worse environments, even on the elevation 2000m, 98% high humidity weather, and 6 Class land wind. The design of the platform with much broader detection range between 12m to 19m and 1.1m width appers more secure working conditions.


    Specifications:

    TYPEHZZ5319JQJ
    NAMEPlatform Type Bridge Inspection Vehicle
    CHASSIS TYPEVOLVO FM400 8X4
    TOTAL MASS32000KG
    OUTER DIMENSION12545X4000X2500
    MAX SPEED96.1KM/H
    SELF-WALK PARTElectro-hydraulic proportional servo system
    OPERATING RANGE UNDER BRIDGE(TOTAL)Machanical hydrostatic transmission
    MAX. HORIZONTAL RANGE(EFFECTIVE)19000mm
    MAX. OVERBRIDGING OF SIDEWALK3500mm
    MAX. CROSSING OF SOUND BARRIER4500mm
    MAX. LOAD ON PLATFORM800KG
    MAX. LOAD ON TELESCOPIC PLATFORM400KG
    MAX. LOWERING DEPTH850mm
    FIRST ROTATION OF PLATFORM0~90°
    SECOND ROTATION OF PLATFORM0~180°
    BALANCER3.5T,5T Movable balancer, fixed balancer
    OPERATING RANGE FOR MOVBLE BALANCER950MM
    ADDITIONAL STABIZER FOR THE REAR AXLEOil cylinder
    CONTROL SYSTEMWired/wireless/manual
    STANDBY GENERATORUS kohler

    Competitive Advantage:


    1. Imported VOLVO Chassis, with 450HP large engine power, Euro VI. Has more merits as: low oil consumption, environmental design, ensure high stability.
    2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
    3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
    4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
    5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
    6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
    7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
    8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
    9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.Bridge inspection vehicle platform bridge maintenance truck full range of movement
