    8x4 Bridge Snooper Truck

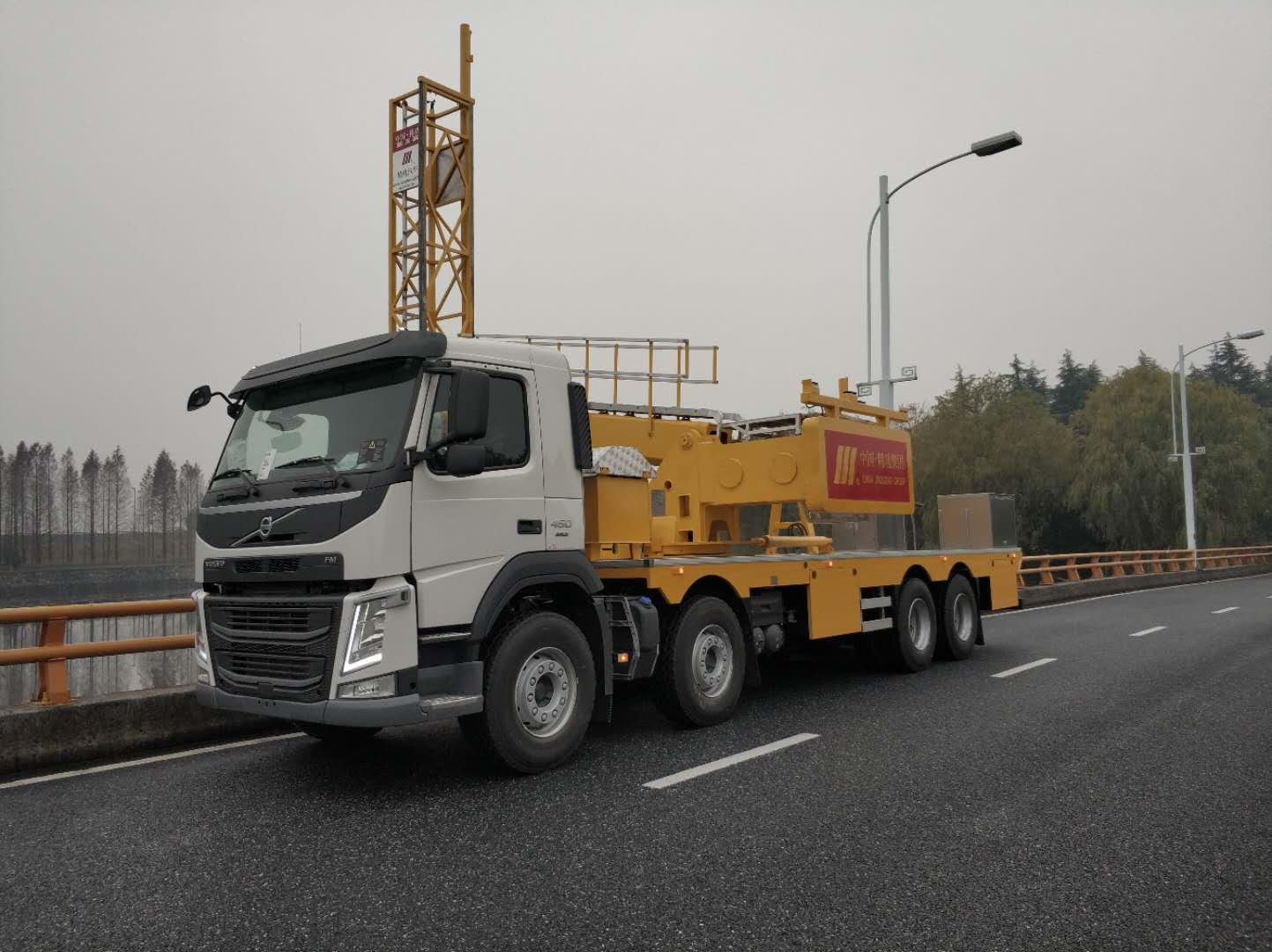

    Euro 6 VOLVO Chassis Bridge Inspection Truck HZZ5319JQJ

    8x4 Bridge Snooper Truck


    Description:


    Road bridges carrying passengers and vehicles are required a routine inspection every year. Meeting these requirements often involves the use of specialized heavy machinery, such as an under-bridge inspection truck, to gain access.


    The Bridge Repair Section is responsible for the design and plans preparation of bridge repair projects on state maintained bridges. Plans are developed by both in-house staff and consultant firms, which are under contract with the Department.


    Bridge Inspection Truck is designed to help detect the performance and reliability of a bridge. Reasonable structure, simple operation, more safety design.


    The new platform design has imporve much reliability and stability. Much safety for sending the operator into any location of the bridges. The new developed product with it’s own exported chassis and some OEM components, such as US POCLAIN amble motor, US KOHLAR emergency power supply, Germany “HAWE” Mutiple Valve, Italy “WOLFF” valve etc. greatly increase the service life, easy maintenance. Three hydraulic section with broader extension, rotary platform, luffing machanism together created a three-dimensional folding, much more suit for those flyovers, long-span, approach heavy duty bridges.


    Technical Specifications


    TypeHZZ5319JQJ
    NamePlatform Type Bridge Inspection Vehicle
    Chassis ModelVOLVO FM450 8×4 Euro VI
    G.V.W.32000kg
    Outer Dimension12480×4000×2500
    Max. Speed96.21m/h
    Hydraulic SystemElectro hydraulic proportional servo system
    Self-walk PartStatic mechanical transmission
    Total length of the operation platform19000mm
    Effective horizontal range19000mm
    Max. overbridging of sidewalk3500mm
    Max. crossing of sound barrier4500mm
    Max. load on platform800kg
    Max. load on telescopic platform400kg
    Max load mass for tail end of operation platform100kg
    Max. lowering depth85000mm
    Total length of boom section7m
    The 1st rotary table rotates angle0~90°
    The 2nd rotary table rotates angle0~180°
    Counter Weight

    Activity counter weight 3.5T,

    Dead counter weight 5T

    Stroke of activity counter weight950mm
    Extra stabilizer for rear axleOil Cylinder
    Remote Control SystemWired/Wireless/Manual
    Emergency Power SupplyUS Kohler Generator

    Competitive Advantage:


    Imported VOLVO Chassis, with 450HP large engine power, Euro VI. Has more merits as: low oil consumption, environmental design, ensure high stability.


    1. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.

    2. Hydrostatic drive, highly achieved secure in slope and wet road conditions.

    3. Those hydraulic steering wheel system, greatly balance the widthness while operating.

    4. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.

    5. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.

    6. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.

    7. Max. platform payload is 800kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg.

    The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.

    8. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
