    Effective Aerial Bridge Inspection Platform And Bridge Inspection Tools

    Professional cost effective aerial platform and under bridge inspection unit from HSA

    The bridge inspection vehicle is a kind of vehicle that provides a working platform during the detection process and can be equipped with bridge detection equipment for mobile inspection or maintenance for bridge inspection person.

    It ensures that the staff can be quickly and safely transported to every inspection part of the bridge, including any positions on the bridge, under bridge, bridge pier, etc.


    Idea for all under-bridge and aerial project: inspections, repairs, stripping operations, painting and sandblasting, general underbridge maintenance, bearing replacement, installation and replacement of under-bridge pipelines and cables.

    Specifications:

    Structure type of bridge inspection vehicleBucket type
    Max. Horizontal working range18M
    Max. Lowering depth21.7 M
    Max. Working Height15M
    Max. load on Bucket250KG
    Max. Width of sidewalk spanning5200mm
    Max. height of guardrail spanning4300mm
    The 1st rotation angle scope0~90°
    The 2nd rotation angle scope0~1800
    Operation ModeWireless Remoter , Panel , Manual
    Drive systemTwo drive system: PTO and gasoline generator
    Amble self travelling deviceTransfer case instead of amble motor
    ChassisVolvo FM420 84RB
    G.V.W31000KG
    Overall dimensions12120(L)×2500(W)×4000(H)mm

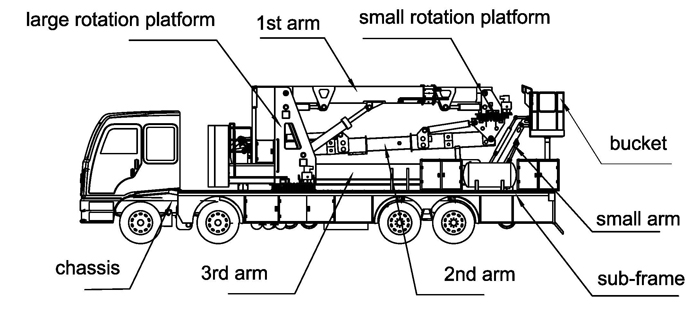

    Constructure Feature-Boom System with Double-rotation, Triple-lifts, and Telescoping Basket

    Competitive Advantage


    High Working Efficiently

    Good capabilities of high-span and wide-span underbridge working range, suitable for different operating conditions


    Optimization Chassis

    Adopted imported VOLVO chassis, 310KW large engine power, good stability, economic environment and the luxurious cab, especially for long-time work.


    Reliable Performance

    The key parts of the hydraulic system, electrical system and control system all adapts imported well-known brand components, with stable and reliable performance,, ensure the fast reaction and stable performance.


    Matured Technology

    Innovation design with dozens of patents, rich experience with over 100 units annual production.
    to ensure the technology and performance of vehicle in the world first class level.


    Market


    We HSA, China leading BIU manufacturer and main supplier in Asia market. (large export to South Korea, Vietnam, Malaysia, Indonesia, Maldives, Brunei et)


    Working video


    Platform type MBIU: https://www.youtube.com/watch?v=IyyTuEgFubo&feature=youtu.be


    Bucket type: https://www.youtube.com/watch?v=dXxARhbfV8I&feature=youtu.be

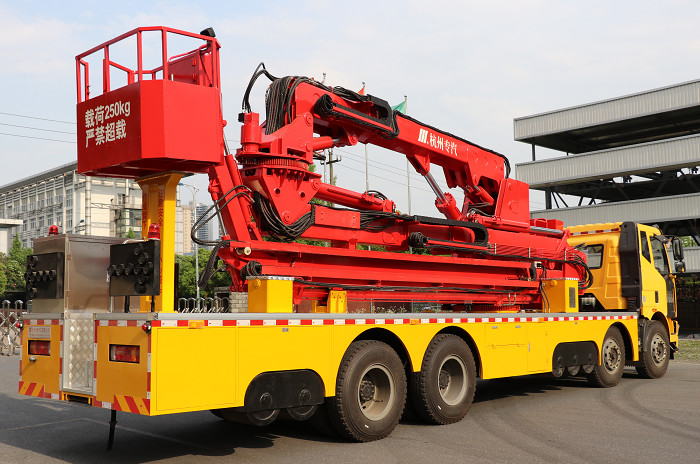

    Effective Aerial Bridge Inspection Platform And Bridge Inspection ToolsEffective Aerial Bridge Inspection Platform And Bridge Inspection Tools


    More Details welcome to contact us with below mobile phone/whatsapp
