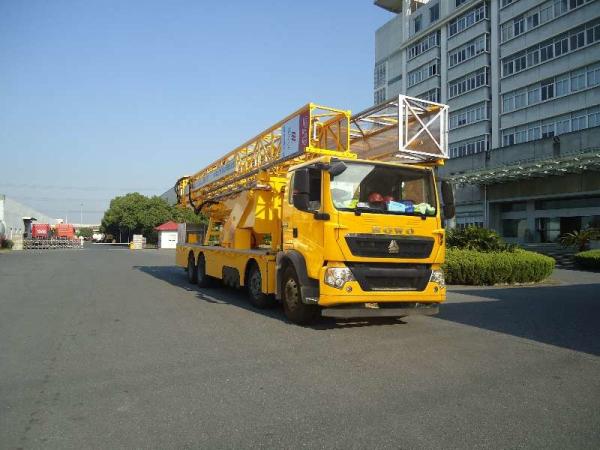

    HOWO Mobile Bridge Inspection Platform Easy Access To Any Position Of Your Bridge

    Ask Lasest Price
    Brand Name : China Jinggong
    Model Number : HZZ5318JQJ22
    Certification : ISO9001, CCC
    Price : negotiation
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 2Units/Month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    HOWO Mobile Bridge Inspection Platform Easy Access To Any Position Of Your Bridge


    High Stability 22m Bridge Inspection Unit rental HOWO 8X4 Electrohydraulic Systems

    Quick Details:

    Model:HZZ5318JQJ22
    Product name:Platform type Bridge Inspection Vehicle
    Chassis Model:HOWO Euro 3 RHD
    Driver type:8×4
    Advantage:low oil consumption, environmental design, ensure high stability.




    Specifications:

    TYPEHZZ5318JQJ22
    NAME22m Platform Bridge Inspection Vehicle
    CHASSIS TYPEHOWO EURO 3
    TOTAL MASS31000KG
    OUTER DIMENSION12565X2500X4000
    MAX SPEED85KM/H

    SELF-WALK PART

    Electro-hydraulic proportional servo system
    OPERATING RANGE UNDER BRIDGE(TOTAL)Machanical hydrostatic transmission
    OPERATING RANGE UNDER BRIDGE(EFFECTIVE)21000mm
    Max crossing sidewalk width3500mm
    THE MAX CROSSING SOUND BARRIER HEIGHT4500mm
    MAX LOAD600KG
    MAX LOAD OF FRONT END250KG
    VERTICAL OPERATING RANGE UNDER BRIDGE8500mm
    FIRST SCOPE OF ROTATION0~90°
    SECOND SCOPE OF ROTATION0~180°
    Balancer3.5T,5T Movable balancer, fixed balancer
    Operating range for movble balancer950MM
    Additional stabler for the rear axleOil cylinder
    CONTROL SYSTEMWired/wireless/manual
    RESERVE POWERUS kohler generator



    Competitive Advantage:

    1. With HOWO EURO 3 Chassis, Has more merits as: low oil consumption, environmental design, ensure high stability.
    2. Air suspension system can adjust the chasis height automaticly, highly increase the stability for such a pot hole ground.
    3. Hydrostatic drive, highly achieved secure in slope and wet road conditions.
    4. Those hydraulic steering wheel system, greatly balance the widthness while operating.
    5. Two sets of control system on platform either into the control box respectively, allows the operator monitor safety.
    6. The hydraulic synchronous interlock device, intercom system, safty lock valve to ensure the safty handing.
    7. US Kohler emergency power supply, able to achieve the folding reset, in case the engine doesn' attent well.
    8. Max. platform payload is 600kg (can affordable 6-7 operators), the tail of the platform payload is about 250kg. The extendable folding platform can be adjustable luffing from 2-4meter, greatly imporve the inspection area under the bridge.
    9. High strength steel platform frame provide more stability which able to rotate 180°under the bridge, and also keep the limitation of max. drop height for 7meter only.
