    Highway Safety Engineering Truck Mounted Attenuator Effective and safe Work Zone

    Ask Lasest Price
    Brand Name : China Jinggong
    Model Number : HZZ5090TFZ
    Certification : ISO9001, CCC
    Price : negotiation
    Payment Terms : 30% T/T as advanced payment after signed contract, and 70% residual payment paid after buyer’s inspe
    Supply Ability : 8 Units/Months
    Delivery Time : 45days
    • Product Details
    • Company Profile

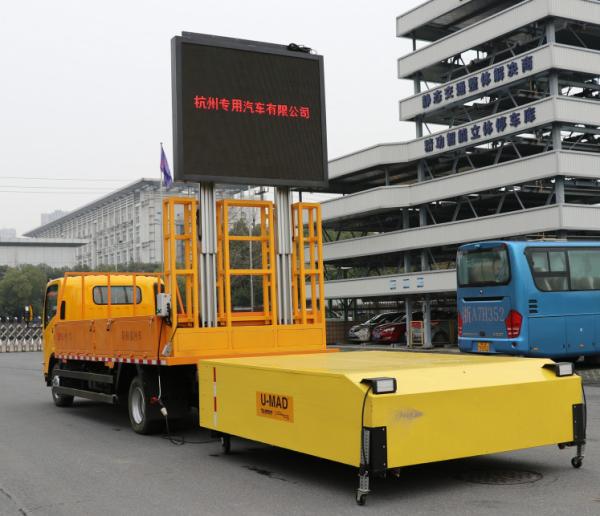

    Highway Safety Engineering Truck Mounted Attenuator Effective and safe Work Zone

    Truck mounted attenuator / highway safety Attenuator Truck Effective work zone safety



    Truck Mounted Attenuator protection in a rescue design,
    It offer outstanding performance and quick, simple refurbishment, provides a wide range of protection for workers, motorists and equipment.


    Attenuator Truck used ISUZU chassis, drive mode is 6 × 4, with a good view cab with air conditioning system and FM / AM radio.

    Main specification for Attenuator Truck:

    categoryItemSpecification
    VehicleProduct modelHZZ5090TFZ
    Product standardFZ09QL00
    Product nameAttenuator Truck
    Outline dimension(L×W×H)8050×2450×3900mm
    Kerb weightTotal weight(kg)9005
    Front axle(kg)3155
    Rear axle(kg)5850
    Full load weightTotal weight(kg)9200
    Front axle(kg)3350
    Rear axle(kg)5850
    Max. speed(km/h)110
    ChassisChassis modelQL1100A8MAY
    EngineModel4HK1-TC51
    Displacement(L)5.193
    Rated power/Rotate speed(kw/r.p.m)141/2600
    Max. Torque/Rotate speed (Nm/r.p.m)513/1600
    Max. Clear power (KW)140
    WheelbaseFront(mm)1680
    Rear(mm)1650
    Min. Turning circle diameter(m)≤15
    Min. Ground clearance(mm)215
    Approach angle(0)17
    Departure angle(0)10



    Crash prevent buffer device
    ManufacturerUSA Lindsay
    Model100K(2000kg-70 km/h)
    Buffer device total weight(kg)800
    Hydraulic pressure11
    Buffer device lifting speed (s/journey)10±5
    LED
    Display screen
    ManufacturerHangzhou Wuhu
    Size of display screen(L×W)(mm)1920×1600
    LED module specificationP10 LED module
    Module image resolution32×16
    Brightness(cd/㎡)≥6000
    Max. Power consumption(W/㎡)500
    Power input(V)AC220
    OutputWifi /flat computer
    Visible distance(m)≥300
    Lifting deviceManufacturerHangzhou Saiqi
    Max. Journey(mm)1800
    Max. Lifting height(mm)5000
    Max. Lifting weight(kg)250
    Hydraulic pressure(MPa)11
    Container size(mm)4720×2350×500
    Lifting light(optional)ManufacturerJiangsu Ouhui
    ModelSFW6110
    EngineBrandHonda
    Rated output electric pressure(V)220
    Rated output power(W)2000
    Light(4PC)Working pressure(V)220
    Power(W)4×500
    light quantity(lm)4×10000
    Lifting barMax. Lifting height(mm)4500
    Drive modePneumatic
