    22m Bridge Inspection Platform Under Bridge Access Structure Mounted With Truck

    Ask Lasest Price
    Brand Name : Hongzhou
    Model Number : HZZ5318JQJ22
    Certification : CCC
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 100units per year
    Delivery Time : 2 months
    • Product Details
    • Company Profile

    22m Bridge Inspection Platform Under Bridge Access Structure Mounted With Truck

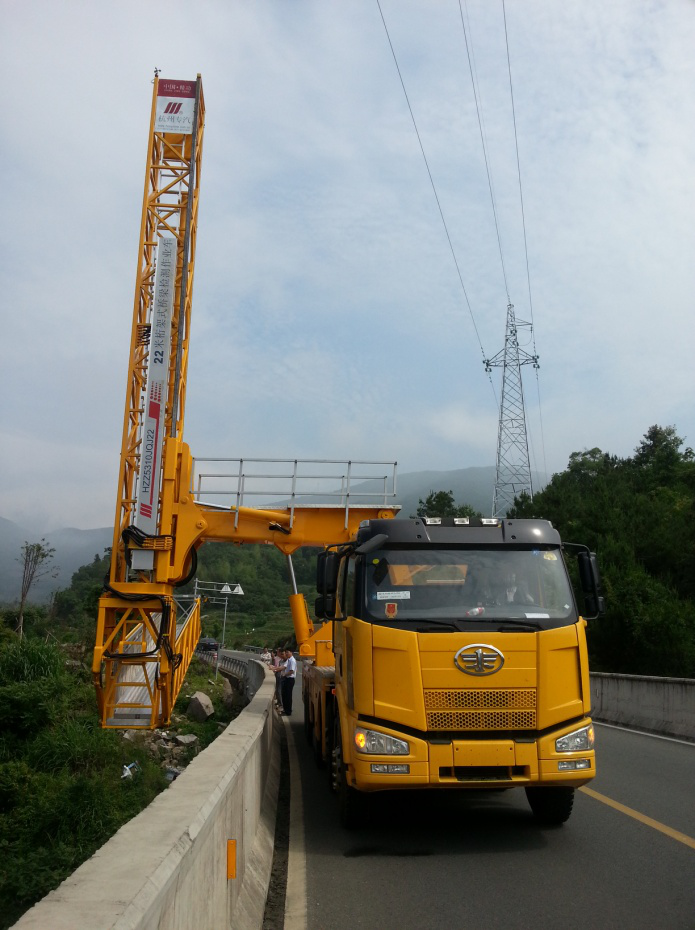

    22m Bridge inspection platform under bridge access structure mounted with truck with FAW chassis


    Main description:


    Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.


    Platform type Bridge inspection vehicle used FAW chassis, drive mode is 8 × 4, the maximum driving speed is 102km / h, maximum working speed is 10m/min, maximum operating inspection speed is 15m/min, and good view cab with air conditioning system and FM / AM radio, it is very suitable for large bridges, overpasses, approach bridges and other various types of bridge preventive inspection.


    Product standard:


    QCT826-2010

    Bridge Inspection Vehicle

    GB1589-2016

    Outer dimension, axle load and mass limit for Road vehicle

    GB/T 3766

    General technical conditions for hydraulic system

    GB 4785

    Installation rule for vehicle and exterior lighting signal

    GB 7258

    afety specifications for vehicle operating on roads

    GB/T 7935

    General technical conditions for hydraulic component

    GB/T 9969.1

    Instructions on industrial products

    GB 11567.1

    Side protection requirements for vehicle and trailer

    GB 11567.2

    Rear and bottom protection requirements for vehicle and trailer

    GB/T 12534

    General rules of the road test method for vehicle

    GB/T 18411

    Product label for vehicle

    JB/T 5943

    General technical requirements for engineering machinery welding

    QC/T 252

    Type testing procedures for special vehicle

    QC/T 484

    Vehicle paint coating

    QC/T 719

    High-altitude operation vehicle

    QC/T 29104

    Hydraulic oil solid pollution limits for vehicle hydraulic system

    QC/T 29105

    Hydraulic oil solid pollution test method for vehicle hydraulic system


    Main characteristic:


    1. Leading Technology

    It is the high-tech products which has dozens of patents for an invention and utility model patents, and developed with comprehensive facts for the bridge structure, to ensure the technology and performance of vehicle is located in the domestic and overseas leading level.

    2.Optimization Chassis

    Used FAW, chassis, attractive appearance, strong power, huge carrying capacity, good stability, economic environment and the luxurious cab, especially for long-time work.

    3. Reliable Performance

    Vehicle electrical, hydraulic control systems used all imported components; Main structure parts made of imported high-strength steel, welded with imported high-strength welding wire.

    4.Loading Capacity is strong

    Max. load on platform is 800kg.

    5. Wide range of application

    Horizontal range: 22000mm, Max. crossing of sound barrier: 4700mm, Max. overbridging of sidewalk:2700mm.

    6.High Working Efficiently

    Can be inspected the entire fan of bottom of bridge at the same time, used mechanical hydrostatic self-propelled patent technology, the operating speed is 15m/min.

    7.Powerful Communication Function

    Configure the video image monitoring system, enabling multi-party video intercom, platform monitoring, reverse video and other functions to ensure smooth communication.

    8. With Complete Accessory

    Users may need to select the individual of various types configuration to extend bridge inspection vehicle’s functions.

    9. High Adaptability To Circumstance

    Has a good performance in high temperatures, low temperatures, high humidity and other harsh natural environment, such as elevation of 2000m, ambient temperature -20 ℃ to +50 ℃, relative humidity 98%, wind level 6 that also can work properly.

    10. Good operation performance

    Equipped with imported wireless remote control(original from Germany NBB), the control distance is 100 meters.
