    Dongfeng 230HP 18m Bucket Type Bridge Inspection Equipment Bridge Snooper Truck

    Ask Lasest Price
    Brand Name : Hongzhou
    Model Number : HZZ5311JQJ
    Certification : CCC
    Price : negotiation
    Supply Ability : 100 units per year
    Delivery Time : 2 month
    • Product Details
    • Company Profile

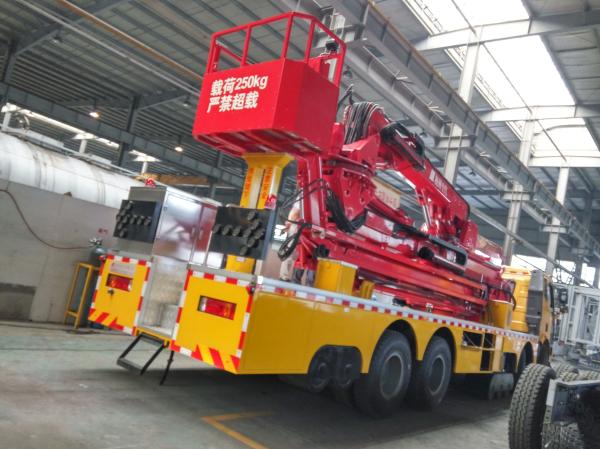

    Dongfeng 230HP 18m Bucket Type Bridge Inspection Equipment Bridge Snooper Truck

    18m Dongfeng chassis Euro 5 bucket type bridge inspection truck under bridge access maintenance repairing
    Detailed Product Description
    Model:HZZ5240JQJ 18G.V.W.:31000
    Outer Dimensions:11240×2500×3930mmEngine Model:DONGFENG CUMMINS ISDe230 30, ISDe245 30, ISDe270 30
    Engine Power:230,245,270(HP)Rated Load Platform:300KG
    Hydraulic System:The Proportion Of Electro-hydraulic Servo Systems

    6x4 18M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFL1250A9

    1. Total Height: 18m
    2. Chassis: Dongfeng
    3. Engine Power: 230HP
    4. Drive Type: 6x4
    5. Vehicle Type: Bucket Type
    6. Name: Bridge Inspection Vehicle

    Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
    The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.



    Specifications:


    ModelHZZ5311JQJ
    Product nameBucket type bridge inspection vehicle
    Chassis Model
    Driver type8×4
    Total mass31000(Kg)

    Outer dimensions
    11240×2500×3930mm
    Engine modelDONGFENG CUMMINS
    ISDe230 30, ISDe245 30, ISDe270 30
    Engine power230,245,270(HP)
    Max. horizontal range0-18.01M
    Max. lowering depth0-23.3M
    Max. overbridging of sidewalk3-5.4M
    The first scope of rotation0-90°
    The second scope of rotation0-135°
    Max. load on platform300KG
    Hydraulic systemThe proportion of electro-hydraulic servo systems
    Control system
    Manual control modeCable control modeWireless control mode


    6x4 16M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFL1250A9

    Vertical working range under bridge Horizontal workingrange under bridge

    6x4 16M Dongfeng Bucket Bridge Inspection Equipment For Bridge Detection , DFL1250A9


    Competitive Advantage:


    Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
