40ft Skeletal Three Axles Steel Shipping Container Trailer Chassis ISO9001 CCC

    Buy cheap 40ft Skeletal Three Axles Steel Shipping Container Trailer Chassis ISO9001 CCC from wholesalers

    Buy cheap 40ft Skeletal Three Axles Steel Shipping Container Trailer Chassis ISO9001 CCC from wholesalers
    • Buy cheap 40ft Skeletal Three Axles Steel Shipping Container Trailer Chassis ISO9001 CCC from wholesalers
    • Buy cheap 40ft Skeletal Three Axles Steel Shipping Container Trailer Chassis ISO9001 CCC from wholesalers

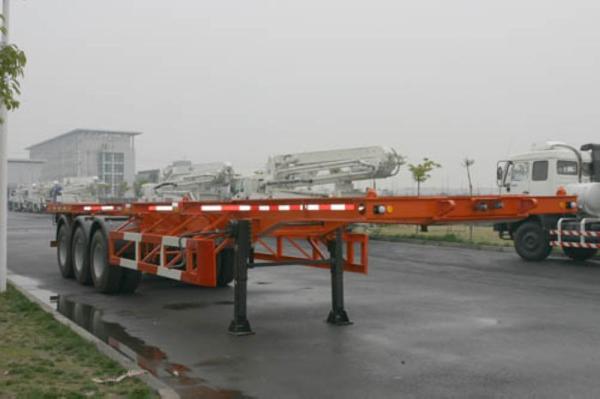

    40ft Skeletal Three Axles Steel Shipping Container Trailer Chassis ISO9001 CCC

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HZZ9400TJZP
    Price : negotiation
    Delivery Time : 45days
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 10 Units/Months
    • Product Details
    • Company Profile

    40ft Skeletal Three Axles Steel Shipping Container Trailer Chassis ISO9001 CCC

    Container Trailer Chassis 40ft Skeletal Three Axles Steel Shipping ISO9001 CCC


    Quick Details:


    Use: Truck Trailer
    Type: Semi-Trailer
    Material: Steel
    Certification:ISO9001, CCC
    Max Payload:32000


    Widely used in such multiple road condition for types of ISO tank containers, reasonable structure, nice performance,simple operate,


    Sophisticated technique: Main parts of the trailer is processed with advanced equipment. The longitudinal beam is welded by a wholly automatic tracking submerged welding machine; Almost the steel spare parts are treated by shot blast before the assembling, which can greatly increase the adhesion of the paint.

    Components:


    1. Frame: The frame is manufacture by a structure, which are made of high strength steel. The gooseneck design reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity , heavy loading mass, not easy to be distorted.
    2. Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
    3. Suspension system: Mechanical suspension and air suspension series optional.
    Mechanical suspension series: It used tandem and balance construction, have high strength and strong impacting resistance, evenly distribute the axle load into each axles. High strength material keep the service life much longer and efficient buffering, simple maintenance, easy replacement for the wearing parts.
    4. Air suspension system: Optional BPW & SAF. More shocking proof which combinated with lifting and steering axles.


    Specifications:


    Model

    HZZ9400TJZP

    Outer dimension(mm)

    12390×2480×1585

    Wheelbase (mm)

    7070+1350+1350

    Number of Axle

    3

    Tare weight(Kg)

    8000

    Payload(Kg)

    32000

    Spec. of Tyre

    11.00R20

    12.00R20

    Number of spring steel plate

    8/8/8
