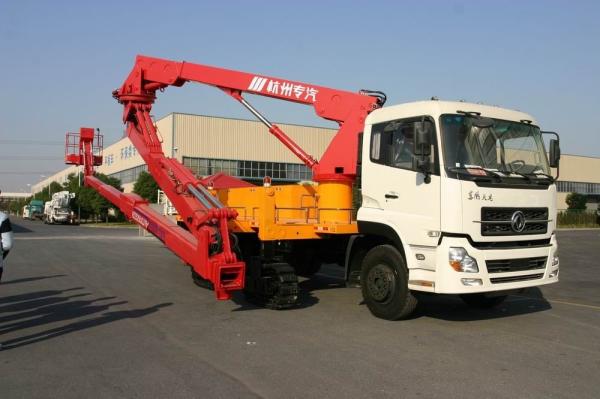

    Low Oil Consumption 16m Under Bridge Access Platforms / Bridge Snooper Truck Dongfeng 6×4

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HZZ5240JQJ16
    Price : negotiation
    Delivery Time : 45days
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 2Units/Month
    • Product Details
    • Company Profile

    Low Oil Consumption 16m Under Bridge Access Platforms / Bridge Snooper Truck Dongfeng 6×4


    Low Oil Consumption 16m under bridge access platforms / bridge snooper truck Dongfeng 6×4

    Quick Details:

    Model:HZZ5240JQJ16
    Product name:Bucket type bridge inspection unit
    Chassis Model:DFL1250A9
    Driver type:6×4
    Advantage:low oil consumption, environmental design, ensure high stability



    Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.
    The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

    Specifications:

    Model

    HZZ5240JQJ 16

    Product name

    Bucket type bridge inspection unit

    Chassis Model

    DFL1250A9

    Driver type

    6×4

    G.V.W.

    24000(Kg)


    Outer dimensions

    11240×2500×3930mm

    Engine model

    DONGFENG CUMMINS
    ISDe230 30, ISDe245 30, ISDe270 30

    Engine power

    230,245,270(HP)

    Max. horizontal range

    0-16.41M

    Max. lowering depth

    0-23.3M

    Max. overbridging of sidewalk

    3-5.4M

    The first scope of rotation

    0-90°

    The second scope of rotation

    0-180°

    Max. load on platform

    300KG

    Hydraulic system

    The proportion of electro-hydraulic servo systems

    Control system

    Manual control mode

    Cable control mode

    Wireless control mode




    Vertical working range under bridge Horizontal working range under bridge

    Competitive Advantage:


    Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
