    22cbm Dongfeng 4x2 Dry Bulk Truck Hydraulic Lifting System

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HZZ5120ZBG
    Price : negotiation
    Delivery Time : 45days
    Payment Terms : LC, TT, Paypal, Western Union
    Supply Ability : 4Units/Month
    • Product Details
    • Company Profile

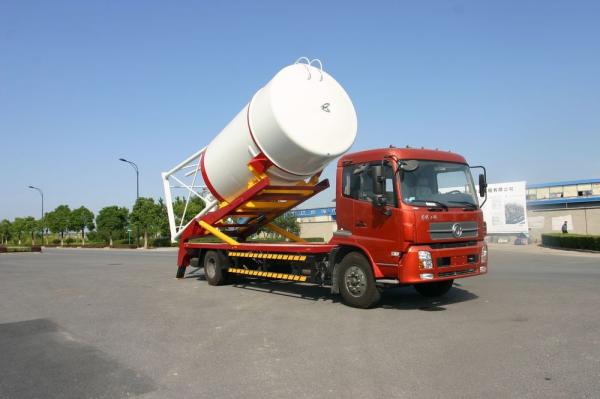

    22cbm Dongfeng 4x2 Dry Bulk Truck Hydraulic Lifting System

    Dry Bulk Truck 22cbm Dongfeng 4x2 Hydraulic Lifting System

    Quick Details:
    1. Name: Dry Bulk Carrier
    2. Hydraulic System: Lifting type with self-loading and unloading system
    3. Chassis: Dongfeng
    4. Drive Type: 4x2
    5. Tank Capacity: 22cbm
    Fully hydraulic lifting and loading system, can be completed whole operation by few labour.
    The set of hydraulic lifting system was a developed product, pantented technical cooperate with Germany “GERGEN”.

    Main arms in gooseneck design(patented) ensure pick-up and deposit out of angle position up to 45°. Pneumatic proportional control for main cylinder. Loading platform in front with integrated hose guiding and protection. Hydraulic van locking for safe and rapid operation. Rear loading platform, short overhang. can greatly achieve and complete the loading/unloading selfly, educe cost, avoid time-wasting, and save more labour.


    Basic Specs:
    1. Tank Diameter: 1800-2500mm
    2. Discharge redisdual ratio: ≤1.5m³
    3. Turnovers: 0~95(°)
    4. Tank Loading Mass: ≤4200kg
    5. Lift Height: 5500~6000mm


    Specifications:

    The whole
    Vehicle

    Dimension

    Outer dimension

    9700×2490×2760

    Gearbox

    Mode

    DF6S750

    Type

    manipulation

    Wheelbase(mm)
    Front/Rear Tread
    (mm)

    5600
    1880/1800

    Manufacturer

    Dong Feng Automobile Co.Ltd.

    Operation

    Soft axle manipulation

    Front/Rear overhang
    (mm)

    1460/2670

    Forward stalls

    six

    Approach/Departure
    (°)angle

    20/9

    Speed Ratio

    6.44/3.841/2.29/1.477/1
    /0.802/5.802

    Quality

    Tare weight(kg)

    8805

    Engine

    Type and model

    Electronic pressurized water-cooled cylinder diesel engine

    Payload(kg)

    3000

    Total mass(kg)

    12000

    Model

    ISDe185 30

    Special
    parameter

    Mortar tank
    weight(Kg)

    ≤3000Kg

    Manufacturer

    Dongfeng Cummins
    Engine Co.Ltd.

    Residual rate(m3)

    ≤1.5


    Displacement(mL)

    4.5

    Turn round angle(°)

    0-92

    Fuel type

    Diesel

    chassis

    Model

    DFL5120XXYB1

    Emission standard

    National III

    Type

    Second

    Manufacturer

    Dong Feng
    Automobile
    Co.Ltd.

    Max.speed(km/h)

    90

    No of axle

    2

    STORAGE TANK FOR DRY-MIXED MORTAR

    Type of tank

    CG storage-35t

    Nominal storage volume(m3)

    22 m3

    Discharge valve diameter(mm)

    250

    Height of discharging(mm)

    750

    torage weight(Kg)S

    35000

    Tare weight(Kg)

    2900

    Diameter(mm)

    2400

    Distance of foot spacing(lateral)

    2.1m×2.1m

    Drive motor power(KW)

    5.5

    Water pump power(W)

    750

    Vibration pump power(W)

    370
