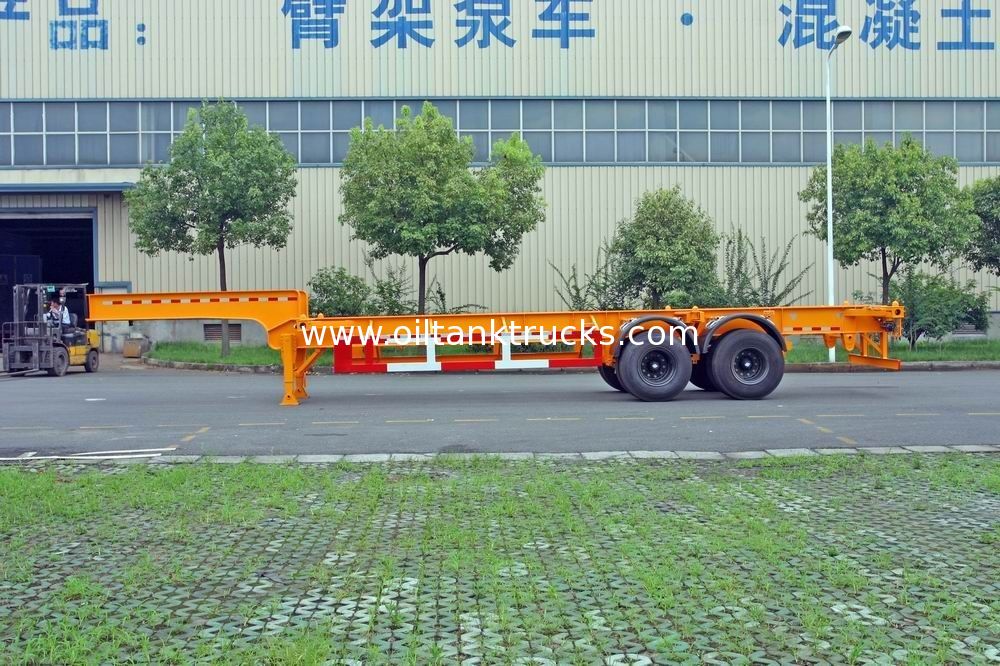

20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container

    Buy cheap 20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container from wholesalers

    Buy cheap 20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container from wholesalers
    • Buy cheap 20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container from wholesalers
    • Buy cheap 20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container from wholesalers
    • Buy cheap 20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container from wholesalers

    20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HZZ9341TJZ
    Price : negotiation
    Delivery Time : 45days
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 10 Units/Months
    • Product Details
    • Company Profile

    20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container

    20ft / 30ft Gooseneck Container Trailer Chassis ISO Transporting Container


    Quick Details:


    Use: Truck Trailer
    Type: Semi-Trailer
    Material: Steel
    Certification:ISO9001, CCC
    Max Payload:29900,29500



    Sophisticated technique: Main parts of the trailer is processed with advanced equipment. The longitudinal beam is welded by a wholly automatic tracking submerged welding machine; Almost the steel spare parts are treated by shot blast before the assembling, which can greatly increase the adhesion of the paint.

    Widely used in such multiple road condition for types of ISO tank containers, reasonable structure, nice performance,simple operate,



    Aplications:


    1. Frame: The frame is manufacture by a structure, which are made of high strength steel. The gooseneck design reasonably to get a balanced consideration of the intensity, rigidity and toughness, maintaining a low center of gravity , heavy loading mass, not easy to be distorted.
    2. Axles: The axle can be selected in different famous brand of BPW and SAF, KIC, FUWA ect. domestic and overseas. Also, the ABS system can be optional with Haldex and WABCO etc., can be greatly increase the stability and safety.
    3. Suspension system: Mechanical suspension and air suspension series optional.
    a. Mechanical suspension series: It used tandem and balance construction, have high strength and strong impacting resistance, evenly distribute the axle load into each axles. High strength material keep the service life much longer and efficient buffering, simple maintenance, easy replacement for the wearing parts.
    b. Air suspension system: Optional BPW & SAF. More shocking proof which combinated with lifting and steering axles.
    4. Brake system: Much more safety and reliability on dual-loop air brake system.


    Specifications:


    Model

    HZZ9341TJZ

    Outer dimension(mm)

    10940,12500×2490×1750

    Wheelbase (mm)

    8250+1320

    9050+1320

    Number of Axle

    2

    Tare weight(Kg)

    4600,5000

    Payload(Kg)

    29900,29500

    Spec. of Tyre

    11.00R20

    Number of spring steel plate

    8/8
