    6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform


    6x4 Bucket Type Bridge Inspection Equipment 16M DongFeng , Folding Platform


    16m Dongfeng 6x4 Bucket type Bridge Inspection Vehicle (HZZ5240JQJ16)


    Quick Detail:


    1. Total Height: 16m

    2. Chassis: Dongfeng

    3. Engine Power: 230HP

    4. Engine: Dongfeng Cummins

    5. Drive Type: 6x4

    6. Vehicle Type: Bucket Type

    7. Wireless Remote control, Wired Remote Control, Cab Computer Monitor

    8. Emission Standard: Euro III

    9. Name: Bridge Inspection Vehicle


    Descrition


    Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

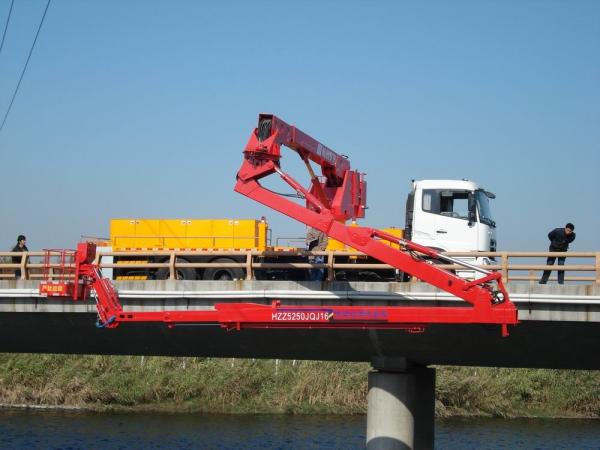

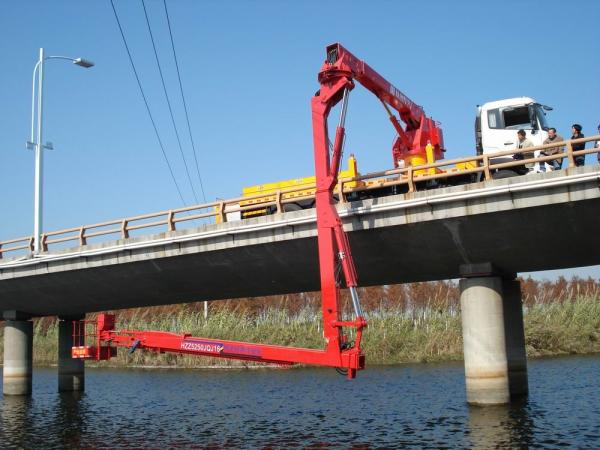

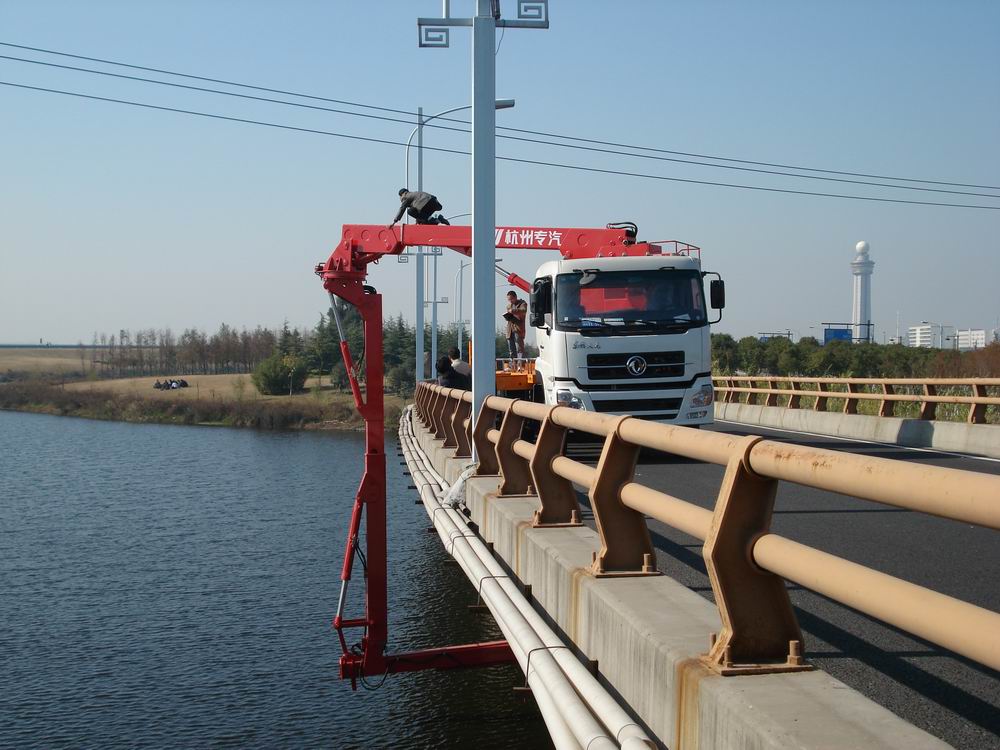

    The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.


    Specifications:


    Model

    HZZ5240JQJ 16

    Product name

    Bucket type bridge inspection unit

    Chassis Model

    Dongfeng

    Driver type

    6×4

    G.V.W.

    24000(Kg)


    Outer dimensions

    11240×2500×3930mm

    Engine model

    DONGFENG CUMMINS

    ISDe230 30, ISDe245 30, ISDe270 30

    Engine power

    230,245,270(HP)

    Max. horizontal range

    0-16.41M

    Max. lowering depth

    0-23.3M

    Max. overbridging of sidewalk

    3-5.4M

    The first scope of rotation

    0-90°

    The second scope of rotation

    0-135°

    Max. load on platform

    300KG

    Hydraulic system

    The proportion of electro-hydraulic servo systems

    Control system

    Manual control mode

    Cable control mode

    Wireless control mode

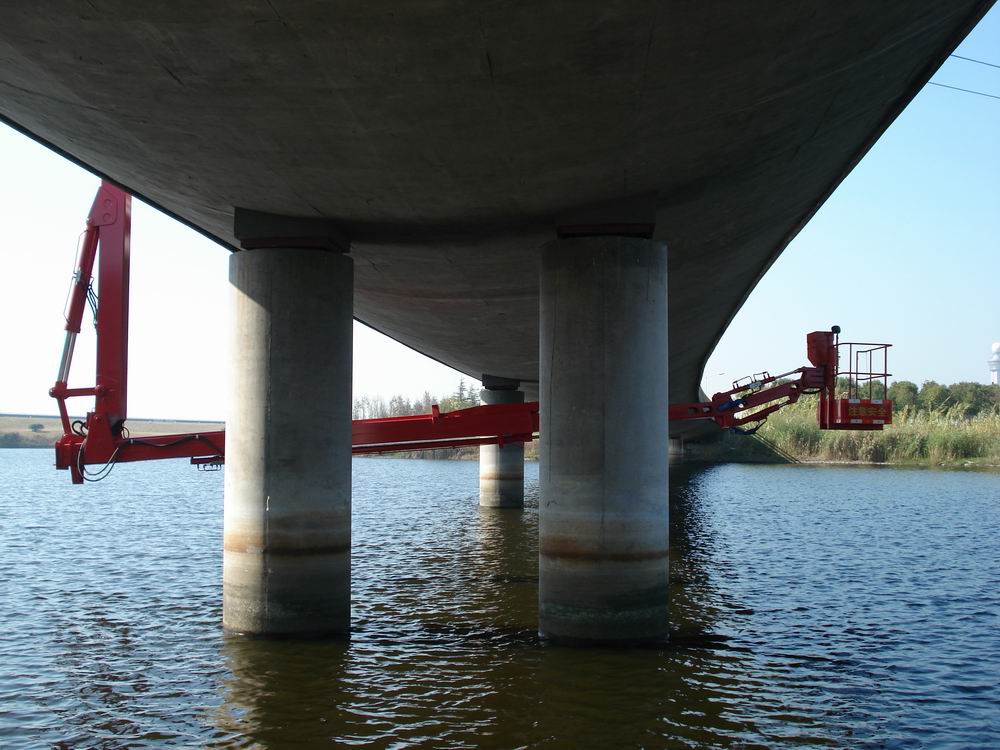

    Vertical working range under bridge Horizontal working range under bridge




    Competitive Advantage:


    Patented outrriger: Main arm across range approx 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition,the total length of sidewalk with bicyclepath is about 4m. This patented design can better afford the 4m widthness reach, hydruclic control with improved flexible movement, get stuck rarely. The outrriger's crawler drives the stabilizer with less pressing to reduce ground damage while operating under the bridge selfly.
