    6x4 Garbage Collection Vehicles Truck

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HJG5251ZLJ
    Price : negotiation
    Delivery Time : 35days
    Payment Terms : L/C,T/T, Western Union
    Supply Ability : 45 units per Month
    • Product Details
    • Company Profile

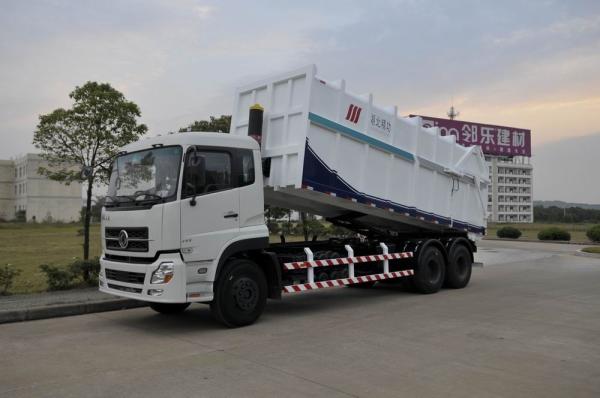

    6x4 Garbage Collection Vehicles Truck

    6x4 Garbage Collection Vehicles Truck


    Quick Details:


    Chassis:DFL1250A12(DONGFENG)
    Engine:ISDe245-40 (180kW, 6.7L)
    Tread:1986/1860/1860mm
    Fuel type:Diesel


    Products for box full seal dumper structure, be controlled by full hydraulic pressure, consist of the chassis, deputy frame, carriage and electric hydraulic control system, etc. The main use of the buried type compression transfer station, vertical type compression transfer station and preloading type waste transfer station and so on.


    Technical characteristics :

    • Vehicle chassis by dongfeng, Jiefang, Sinotruk, domestic well-known manufacturers of the latest II class chassis refitting, reliable performance;
    • Cabinet with fully sealed design ,with a “B-type”silicon rubber seal and the real of the large capacity storage tank “double”seal structure,no secondary pollution during waste transportation;
    • Large volume and a large section size,high vehicle transportation efficiency ,and good compliance with waste disposal equipment;
    • Vehicle load lifting mechanism was based on the size of the cylinder were used after the lifting structure,triangular zoom in lifting the structure,before the lifting cylinder structure in several ways,reasonable structure,reliable performance;
    • Hydraulic drive deyice,the main electrical and hydraulic components are famous brand products,with hydraulic control a single dual-controlled electro- hydraulic control and a variety of configurations,the overall performance of the product quality.
    • Products are all structure after blasting, derusting, spraying treatment, painting for the internationally renowned Dutch Nobel or Zhongyuan guanxi brand marine heavy protective type anticorrosive paint with good anticorrosion.

    Scope of application:


    The products are mainly applied to the buried waste transfer station, vertical type waste transfer station, horizontal preloading type waste transfer station, used to transport precompression garbage to improve the garbage transfer efficiency, and ensure good environmental protection on the way.


    Specifications:


    Model

    HJG5251ZLJ

    Chassis

    DFL1250A12

    (DONGFENG)

    Engine

    ISDe245-40

    (180kW, 6.7L)

    Outer dimension

    (L × W × H)

    9580mm×2480mm ×3550mm

    Gross Weight

    25000kg

    Curb Weight

    13525kg

    Rated load

    11345kg

    Tread

    1986/1860/1860mm

    Wheel base

    5350+1300mm

    Max. Speed

    90Km/h

    Emission Standard

    EURO Ⅳ

    Fuel type

    Diesel
