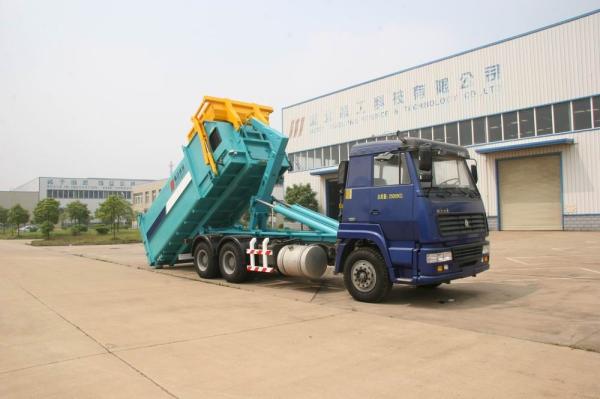

    Detachable Garbage Collection Vehicles 13.2ton

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HJG5250ZXX
    Price : negotiation
    Delivery Time : 35days
    Payment Terms : L/C,T/T, Western Union
    Supply Ability : 45 units per Month
    • Product Details
    • Company Profile

    Detachable Garbage Collection Vehicles 13.2ton

    Detachable Garbage Collection Vehicles 13.2ton


    Quick Details


    Model:HJG5250ZXX
    Drive Wheel:6x4
    Chassis :ZZ1256M4646C (SINOTRUCK)
    Engine :WD615.92E (196kW, 9.726L)


    Product has the model complete, wide application rage, performance stable and reliable, the main supporting used for mobile conjoined compression box, horizontal direct pressure type waste transfer station and garbage disposal equipment, that is a kind of ideal choice for the city sanitation department, all kinds of enterprises.

    Products consist of vehicle chassis, pull-arm institutions, electro-hydraulic control system, etc, it can easy to load various of carriage and equipments.


    Technical characteristics :

    • Vehicle chassis by dongfeng, Jiefang, Sinotruk, domestic well-known manufacturers of the latest II class chassis refitting, reliable performance;
    • Pulling arm body from Germany GERGEN, mature technology, reliable performance;
    • Equipment electrical and hydraulic components are well-known international brand, with a long product life, low failure rate;
    • Equipment electro- hydraulic control system user-friendly design, flexible manipulation;
    • Supporting a large volume, transport efficiency, cars with a taper design, ease of dumping;
    • Supporting compartment with fully sealed design, with a “B-type”silicon rubber seal and the real of the large capacity storage tank “double”seal structure,no secondary pollution during waste transportation;
    • All structural parts are after blasting, blasting, spraying paint adopt the Dutch Nobel internationally renowned brands, or COSCO Kansai Companies heavy protective anticorrosive marine paint.

    Scope of application:


    The product is mainly applied to horizontal direct pressure type waste transfer station, conjoined type rubbish compressed box and other products, used to transfer loading into various dustbin of garbage, vehicle transfer high efficiency, environmental protection performance good on the way.


    Specifications:


    Model

    HJG5250ZXX

    Chassis

    ZZ1256M4646C

    (SINOTRUCK)

    Engine

    WD615.92E

    (196kW, 9.726L)

    Outer dimension

    (L × W × H)

    8690mm×2496mm ×3100mm

    Gross Weight

    25000kg

    Curb Weight

    11620kg

    Rated load

    13250kg

    Lifting Tonnage for Hooklift

    17/20 T

    Tread

    1958/1830/1830mm

    Wheel base

    4325+1350mm

    Max. Speed

    90Km/h

    Emission Standard

    EURO Ⅲ

    Fuel type

    Diesel
