Carbon Steel 40 Ft Chassis

    Buy cheap Carbon Steel 40 Ft Chassis from wholesalers

    Buy cheap Carbon Steel 40 Ft Chassis from wholesalers
    • Buy cheap Carbon Steel 40 Ft Chassis from wholesalers
    • Buy cheap Carbon Steel 40 Ft Chassis from wholesalers

    Carbon Steel 40 Ft Chassis

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HZZ9401TJZ
    Price : negotiation
    Delivery Time : 45days
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 10 Units/Months
    • Product Details
    • Company Profile

    Carbon Steel 40 Ft Chassis

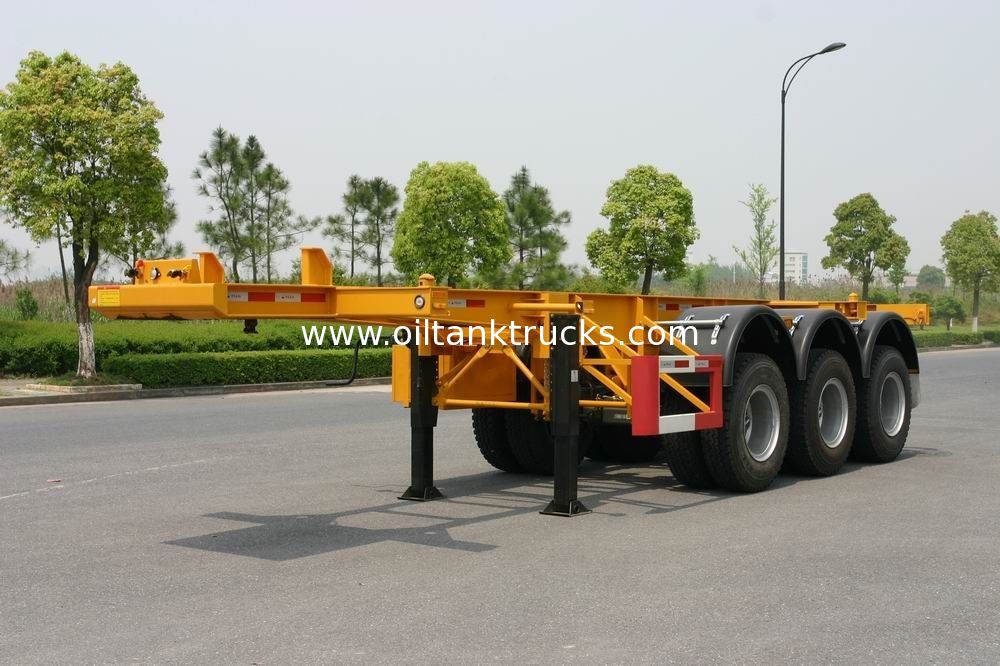

    40ft Carbon-steel Container Trailer Chassis


    Quick Details

    • Use: Truck Trailer
    • Type: Semi-Trailer
    • Material: Steel
    • Size: 8500x2480x1585
    • Max Payload: 35000kg
    • Place of Origin: Zhejiang, China (Mainland)
    • Brand Name: Hongzhou
    • Model Number: HZZ9401TJZ
    • Components: Trailer Plugs
    • Total mass (kg): 40000
    • Kerb weight (kg): 5000
    • Payload (kg): 35000
    • Wheel base (mm): 4160+1310+1310
    • Tread (Front/Rear): 1830/1830/1830

    Specifications

    Basic specs for container trailer:
    1.Total payload:35000kg
    2.Axles:Rear 3 FUWA
    3.Trailer type:Skeletal container semi-trailer

    Basic specs for 40ft Carbon-steel skeletal container trailer chassis (Rear 3 FUWA axles):
    1. Total payload: 35000kg
    2. Axles: FUWA or BPW

    3. Chassis material: Carbon-steel

    4. ABS System: With ABS System

    5. Landing leg: JOST or KIC

    6. Trailer type: Skeletal container semi-trailer

    7. Chassis specs: Can load one or two standard container or tank container

    Standard technical parameters of 40ft tank container transport semi-trailer:


    Purpose of this trailer

    This is the special semi-trailer for TANK CONTAINERS. (with Flatbed type and Skeleton type)


    Advantages

    Reliable, long life and easy maintenance characteristics. In addition, in line with international maritime standards,

    with self-weight light.


    Others

    We produced the tank container semi-trailer in accordance with the chinese standard design.


    Specialfication Of Container Semi-trailer


    ProductFlat-bed typeSkeleton typeSkeleton type
    ModelHZZ9400TJZPHZZ9400TJZHZZ9280TJZ
    Size40 feet40 feet20 feet
    Tyre

    11.00R-20,

    Rail tyre

    11.00R-20,

    Rail tyre

    11.00-20,

    Nylon tyre

    AxleBPWBPW

    FUWA

    (chinese brand)

    Kingpin50# JOST50# JOST50#JOST
    Landing legKICKICKIC
    Frame materialCarbon steel (Q345)Carbon steel (Q345)Carbon steel (Q345)
    Container lock12 pieces12 pieces4 pieces
    Tyre holder2 pieces2 pieces1 piece
    Tool box1 piece1 piece1 piece
    Braking systemDual braking systemDual braking systemDual braking system
    Outer dimension (mm)12391x2480x158512390x2480x15307500x2480x1690
    Wheel base (mm)7070+1350+13507070+1350+13504250+1350
    Tare weight (kg)800069204250
    Payload (kg)320003308024000
    Total weight (kg)400004000028250
    Number of spring steel plate8/8/88/8/87/7
    Number of axles332
    Number of tyre12128
