    16m Bucket Under Bridge Access Equipment Bridge Inspection Units DONGFENG Chassis 6 × 4 Drive Mode

    Ask Lasest Price
    Brand Name : China Jinggong
    Certification : ISO9001, CCC
    Model Number : HZZ5240JQJ16
    Price : negotiation
    Delivery Time : 45days
    Payment Terms : T/T, L/C, Paypal, Western Union
    Supply Ability : 2Units/Month
    • Product Details
    • Company Profile

    16m Bucket Under Bridge Access Equipment Bridge Inspection Units DONGFENG Chassis 6 × 4 Drive Mode

    Bridge Inspection Truck under Bridge Access Detection Maintenance Equipment

    1. Total Height: 16m
    2. Chassis: Dongfeng
    3. Engine Power: 230HP
    4. Drive Type: 6x4
    5. Vehicle Type: Bucket Type
    6. Name: Bridge Inspection Vehicle

    Bucket type is equipped with DongFeng chassis, a famous national brand. Some OEM hydraulic parts and quality components help ensure the reliable performance and long service life.

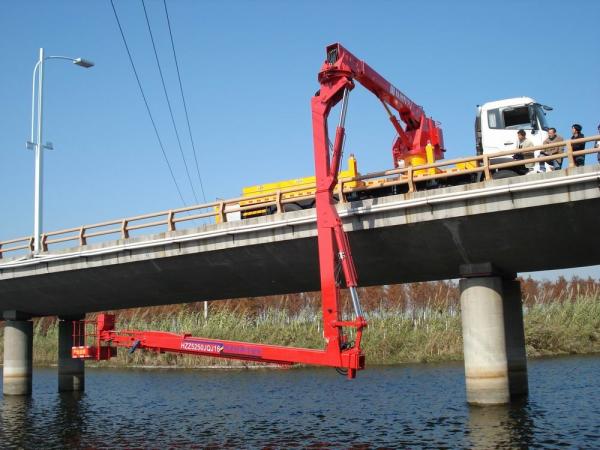

    The telescopic mechanism, swing mechanism and luffing mechanism of the operating truck create a three-dimensional space. This provides the vehicle with incredible freedom of movement and also enables it to quickly and safely send staff or test equipment to any location under the bridge.

    Specifications:

    Model

    HZZ5240JQJ 16

    Product name

    Operating vehicle for bridge detection

    Chassis Model


    Driver type

    6×4

    Total mass

    24000(Kg)


    Outer dimensions

    11240×2500×3930mm

    Engine model

    DONGFENG CUMMINS
    ISDe230 30, ISDe245 30, ISDe270 30

    Engine power

    230,245,270(HP)

    Operating range under bridge

    0-16.41M

    Vertical operating range under the bridge

    0-23.3M

    The main arm across the width

    3-5.4M

    The first scope of rotation

    0-90°

    The second scope of rotation

    0-135°

    Rated load platform

    200KG

    Hydraulic system

    The proportion of electro-hydraulic servo systems

    Control system

    Manual control mode

    Cable control mode

    Wireless control mode





    Vertical operating range under the bridge Operating range under bridge

    Competitive Advantage:
    Patented outrriger: Main arm across range average 2.5m in a nominal design which greatly increase lateral stability, prevent side-tip, makes sure operators is working at a secure condition. But in Chinese road condition almost sidewalk with bicyclepath about 4m. This protrack design can better afford the wide widthness reach, hydruclic control improve more flexible movement, reduce the sticking. Crawler drives the outrriger takes small pressure stress to ensure almost zero ground damage while operating under the bridge selfly.
